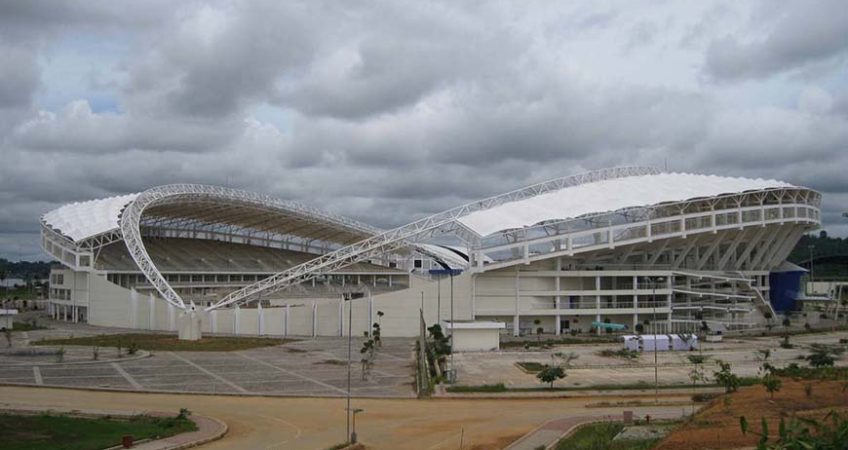

The stand of this project adopts concrete frame structure, the body is made of steel arched truss structure, and the roof is covered with Ferrari PTFE membrane. The maximum height of the structure is 50m, the length of the cantilever is up to 60 meters, and the total area is more than 22, 000 square meters. The membrane is consists of 55 Cones and 19 flats. The membrane boundary connection is a fixed platen and a U-shaped screw adjustable. We use the combination of total station and manual measurement to perform the measurement of the membrane installation control points in batches, and then cut and install the membrane.

The fabric gazebos canopies is a good solution for large stadiums. Because the tensile structure building has many advantages such as novel shape and good light transmission, it is widely used in sports venues. The space frame structures increases the space span and easily covers the entire stand, making construction easier and shortening the construction period of the project. The unique architectural design makes the stadium full of space art.

The fabric substrate of the PTFE membrane material is glass fiber, and the diameters of the fiber should be in the range of 3.30 to 4.05 μm, and the weight should be greater than 150 g/m. The most important feature of PTFE membrane is its high strength. The medium strength PTFE membrane is only 0.8mm thick, but its tensile strength has reached the level of steel; and the lower modulus of elasticity is beneficial to the complex surface shape of the membrane. It has a wide temperature range and can be used in the temperature range of -70 °C to 230 °C. With unique optical advantages, the incident light during the day becomes natural warm light, preventing glare, no shadow, even light distribution; almost no ultraviolet light transmission, which preventing the fading of interior decoration materials and equipment; night high reflection performance makes the room excellent Lighting effects, which reducing power consumption, and can bring out the brilliance of buildings in the night sky.

Specifications

h

• Large Span: Tensile Structures can create an expansive covered area, exceed to 200m.
• √. Unique Design: Tensile fabric Structure gives architects, designers, and engineers the opportunity to experiment with form and create visually exciting and iconic structures.
• √. Various Shape: Changeful supporting structure can make lots of different shapes of tensioned structure with flexible membrane.
• √. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs.
• √. Easy to Install: Faster and more cost-effective in comparison to traditional construction projects.
• √. Weatherproof: Durable and designed to withstand even the most severe weather conditions. Provide protection from both the rain and sun.
• √. Excellent Durability: Fabric tensile Structure is characterized by durability and longevity, can be built in different areas around the world, from the frigid arctic pole to the scorching desert heat.
• √. ECO Friendly: Have high sun reflectivity and low solar absorption. As a result, less energy is used in the building, ultimately reducing the cost of electricity.
• √. Low maintenance Needs: Tensile membrane Structures require minimal maintenance for clients, whether use of PVC, PVDF, PTFE or ETFE.
• √. Outstanding Natural Daylighting: Membrane is translucent, In daylight, tension structures could offer rich soft diffused naturally daylight space, and at night, artificial lighting can make it bright and colorful.

Installation

Step 1: Design

BDiR use the latest tensile structural design software to produce
detailed tensile structural designs.

Including:
BIM model design (building information modeling),
finding and load analysis,  integrated building design,
joint force analysis, membrane cutting analysis,
construction process simulation, numerical wind tunnel simulation.

Step 2: Membrane Fabrication

Membrane fabrication plays an important role in the tensile structure.

There are many fabrics (PVC, PVDF, PTFE, ETFE) in the market, they come from all over the world, they have different characteristics and prices, different welding or joining techniques. We will make the best choices from structural design, project location and our customer budget.

Step 3. Steel Fabrication

Tensile structure are made of steel structural members that are welded
and painted in our factory.

We will conduct the following procedures with high standards:
Paint thickness detection, ultrasonic testing,
magnetic particle testing, high-strength bolt torque testing,
cable pre-tensioning, rust removal ,
pre-assembly inspection, painting, etc.

Step 4: Cable Fabrication

Cable and hardware fittings are procured from the most reliable and certified vendors of the industry in compliance with the international quality standards.

Cable fabrication are proceed under guidance of our skilled and experienced experts.

Step 5: Installation

The installation of the tension structure is critical to the overall success
of the project.

We will provide on site installation service. Our project manager will work
with the client to coordinate the structure installation on site.  Including
steel structure installation, membrane lifting and measure tension. If you
prefer self-installation, we’ll send you detailed instructions so it can be
easily installed.

Step 6: The Future

Our service will not end at the time of delivery and installation!

Because we only use the highest quality membrane materials and steel frames, cables and parts. You can rest assured that your new tensile structure is built to last. Besides, Tensile structure does not require much maintenance and we offer a up to 35 year warranty.
